Overview

In this tutorial, we will explain step-by-step everything how to implement CRUD (CREATE, READ, UPDATE, DELETE) Operations using Spring Boot, Jpa, and MySQL. Follow these steps to implement complete CRUD Operations.

Table of Contents:

• Introduction about CRUD (CREATE, READ, UPDATE, DELETE) Operations
• Understand about the MVC Pattern or Architecture for creating rest apis
• Set up the Spring Boot application (server).
• Configure the application.properties file to connect the database.
• Create REST APIs using Spring Boot for CRUD operations (CREATE, READ, UPDATE,DELETE)
• Run the application and test apis using postman

CRUD (create, read, update delete) Operations

Method	API URL	Description
GET	http://localhost:port/endpoint	Get all the data
GET	http://localhost:port/endpoint/{id}	Get single data based on ID
POST	http://localhost:port/endpoint	Add new data
PUT	http://localhost:port/endpoint	Update data
DELETE	http://localhost:port/endpoint/{id}	Delete data based on ID

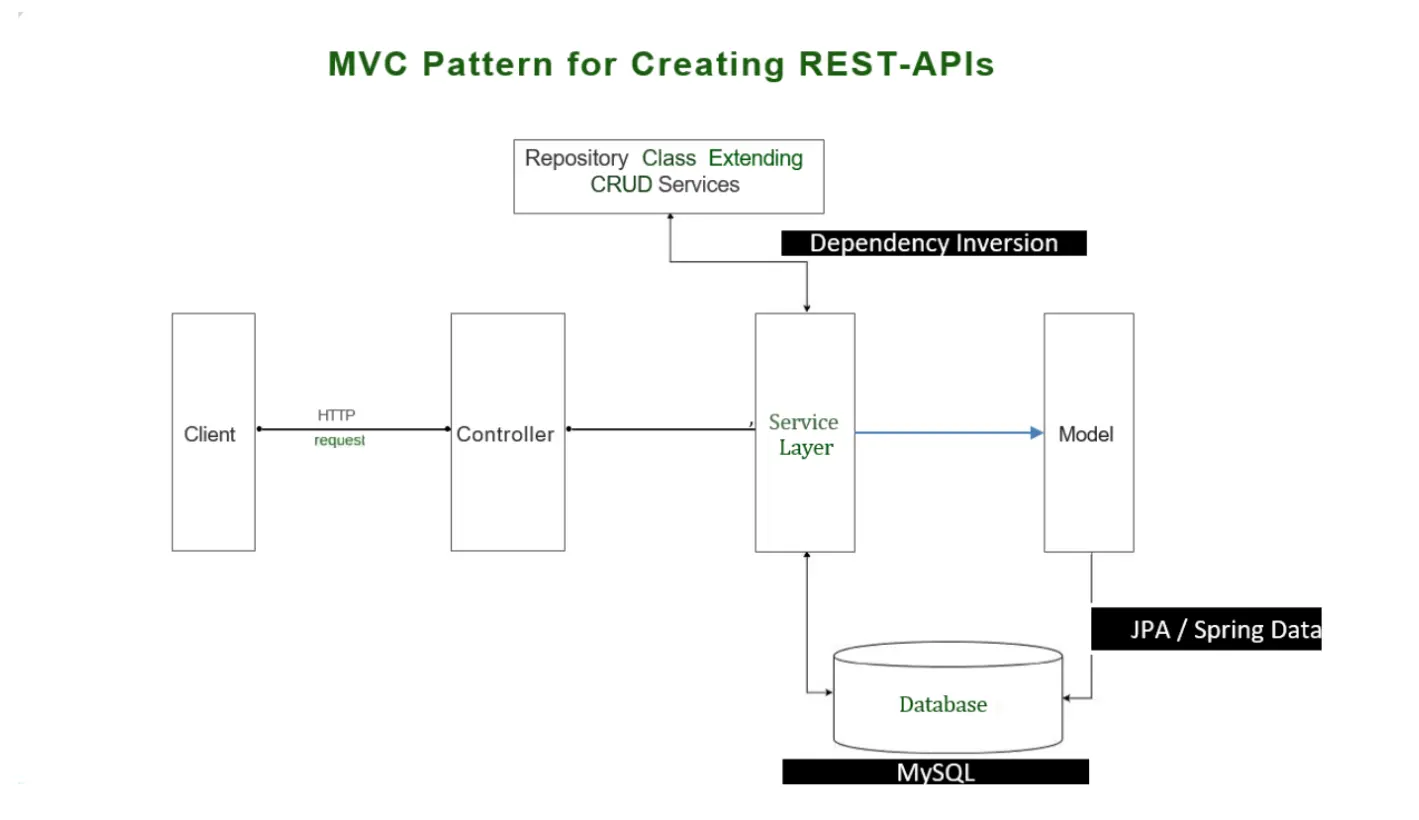

Before creating an APIs let’s understand about the MVC Pattern or Architecture for creating rest apis

Source – geeksforgeeks

Now let’s implement APIs for CRUD operations in systematic way

Step 1: Set Up Your Spring Boot Application

Use Spring Initializer or an IDE like IntelliJ or Eclipse to create a new Spring Boot project. Add the following dependencies:

• Spring Web: For building web applications and REST APIs.
• Spring Data JPA: For interacting with the database.
• MySQL Driver: To connect to your MySQL database.

Step 2: Configure the application.properties File

1. Open the application.properties file and configure your database settings. Here’s an example configuration:

2. Replace your_database_name, your_username, and your_password with your database details.

 # Server configuration
 server.port = 8081

 # Database configuration
 spring.datasource.url=jdbc:mysql://localhost:3306/your_database_name
 spring.datasource.name=your_database_name
 spring.datasource.username=your_username
 spring.datasource.password=your_password
 spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver

 # JPA configuration
 spring.jpa.hibernate.ddl-auto=update


For More Details:

If you want to learn more about configuring the application.properties file, check out this detailed article:

Create REST APIs Using Spring Boot: Step-by-Step Guide

Step 3: Create REST APIs Using Spring Boot for CRUD operations (CREATE, READ, UPDATE,DELETE)

Now we going for create REST APIs using Spring Boot for CRUD Operations (Let’s take the example of Student), we need:

• Entity Classes: Representing the database table.
• Controller: Defining the endpoints of the API.
• Service: Containing the business logic.
• Repository: Performing database operations.

Let’s create each of these components step by step.

Entity Class (Students)

@Entity
public class Students {

    @Id
    private int id;
    private String name;
    private int age;
    private String dept;

    // Parameterized constructor
    public Students(int id, String name, int age, String dept) {
        super();
        this.id = id;
        this.name = name;
        this.age = age;
        this.dept = dept;
    }

    // Non-parameterized constructor
    public Students() {
    }

    // Getters and setters
    public int getId() {
        return id;
    }
    public void setId(int id) {
        this.id = id;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    public int getAge() {
        return age;
    }
    public void setAge(int age) {
        this.age = age;
    }
    public String getDept() {
        return dept;
    }
    public void setDept(String dept) {
        this.dept = dept;
    }
}

Controller (for defining api endpoint)

@RestController
public class StudentController {

    @Autowired
    private StudentService studentService;

    @PostMapping("/addStudent")
    @CrossOrigin(origins = "http://127.0.0.1:5500")
    public Students addStudent(@RequestBody Students students) {
        return studentService.addStudent(students);
    }

    @GetMapping("/getStudents")
    @CrossOrigin(origins = "http://127.0.0.1:5500")
    public List<Students> getAllStudents() {
        return studentService.getAllStudents();
    }

    @PostMapping("/updateStudent")
    @CrossOrigin(origins = "http://127.0.0.1:5500")
    public Students updateStudent(@RequestBody Students students) {
        return studentService.udpateStudent(students);
    }

    @GetMapping("/deleteStudent/{id}")
    @CrossOrigin(origins = "http://127.0.0.1:5500")
    public Boolean deleteStudent(@PathVariable int id) {
        return studentService.deleteStudent(id);
    }
}

Service

@Service
public class StudentService {

    @Autowired
    private StudentRepo studentRepo;

    public Students addStudent(Students student) {
        return studentRepo.save(student);
    }

    public List<Students> getAllStudents() {
        return studentRepo.findAll();
    }

    public Students udpateStudent(Students updatedStudent) {
        Optional<Students> student1 = studentRepo.findById(updatedStudent.getId());
        Students student = student1.get();
        student.setAge(updatedStudent.getAge());
        student.setDept(updatedStudent.getDept());
        student.setName(updatedStudent.getName());

        return studentRepo.save(student);
    }

    public Boolean deleteStudent(int id) {
        studentRepo.deleteById(id);
        return true;
    }
}

Repository

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

import com.crudAPI.example.entity.Students;

@Repository
public interface StudentRepo extends JpaRepository<Students, Integer> {

}

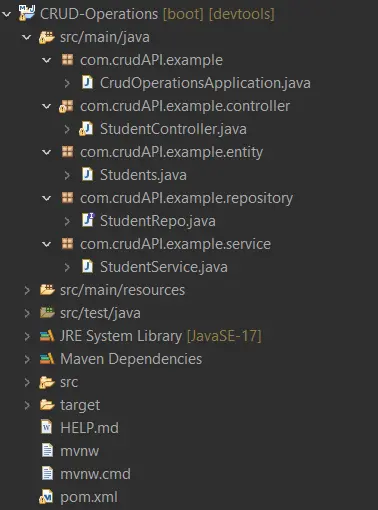

Project Structure

Here’s an image showing the project structure for better understanding.

Run the Application

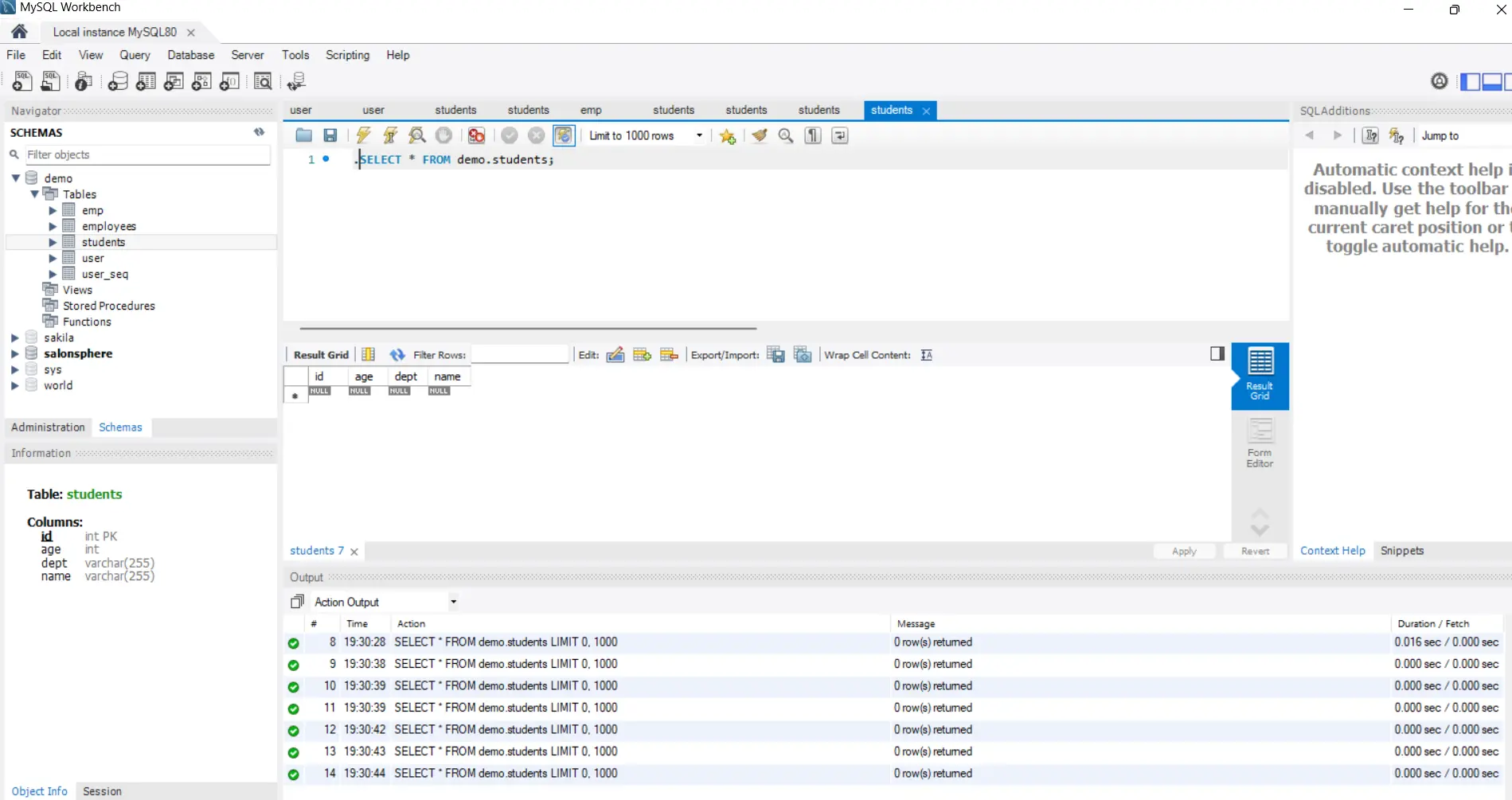

Run your Spring Boot application. It will automatically create the database table based on the students entity.

Now let’s test all the apis one-by-one using postman

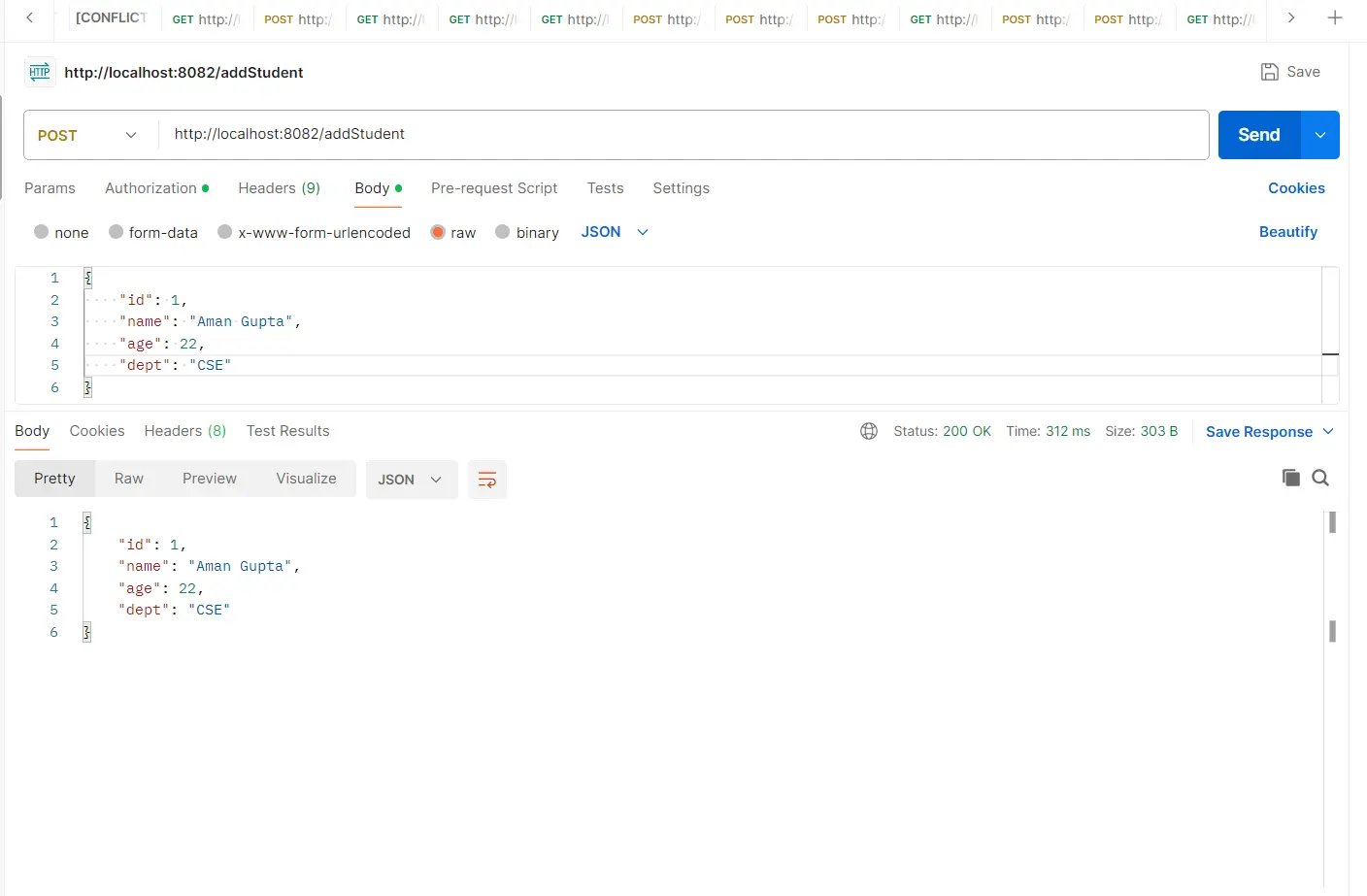

-> Insert data using api (test- Create api)

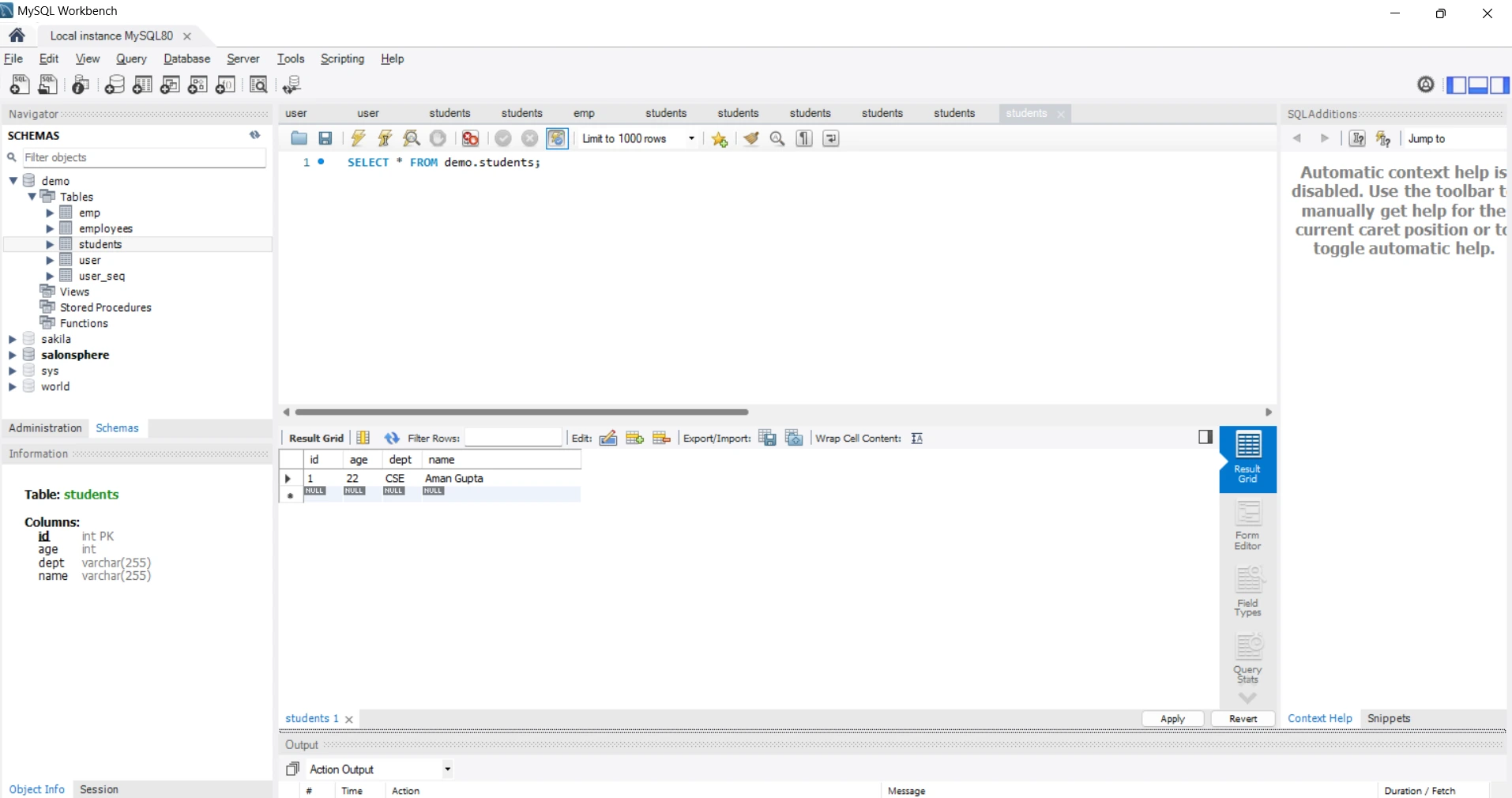

We have insert some data into database using api now let’s check students table data added or not

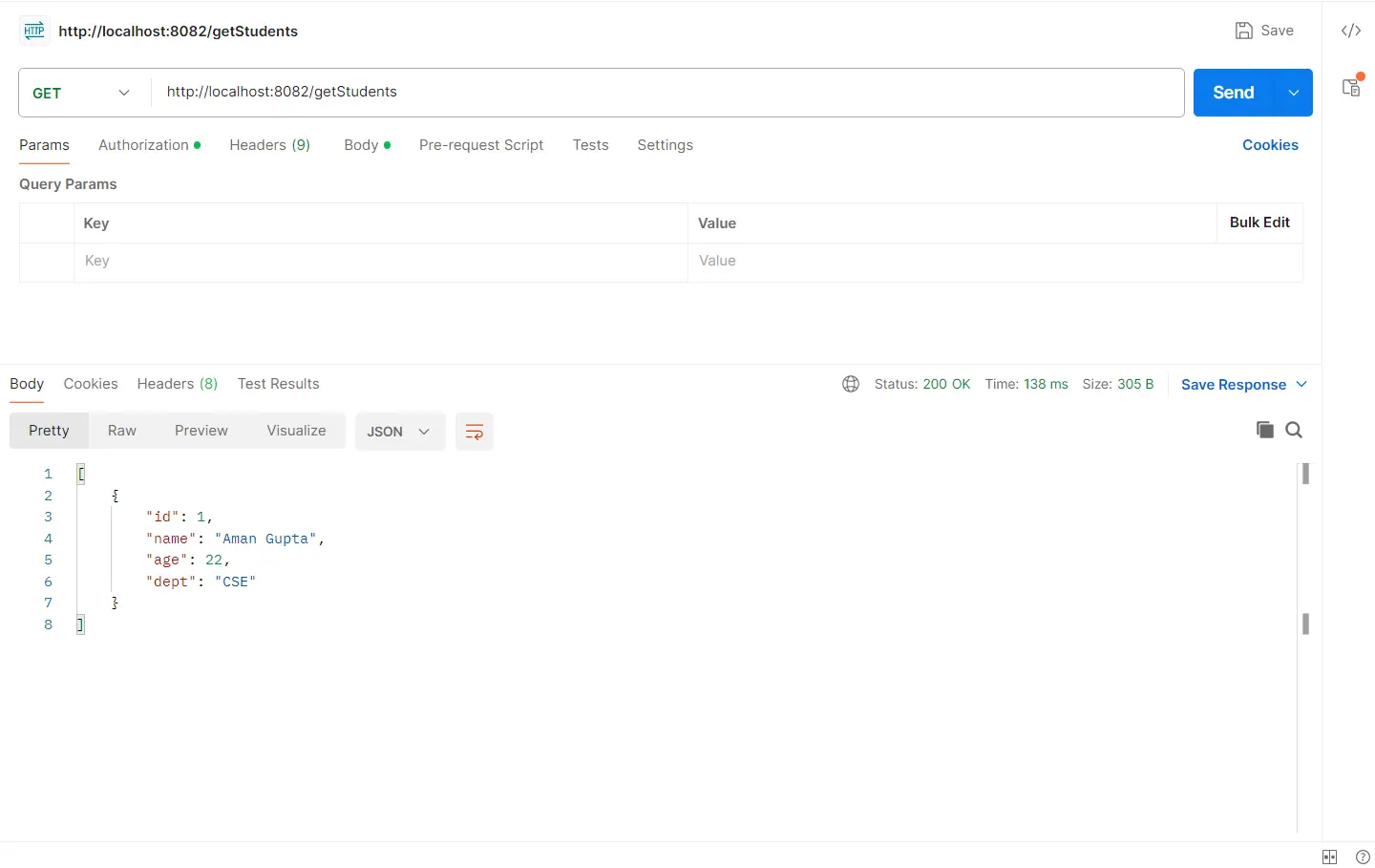

-> Fetch all the data from Student table (test- Read api)

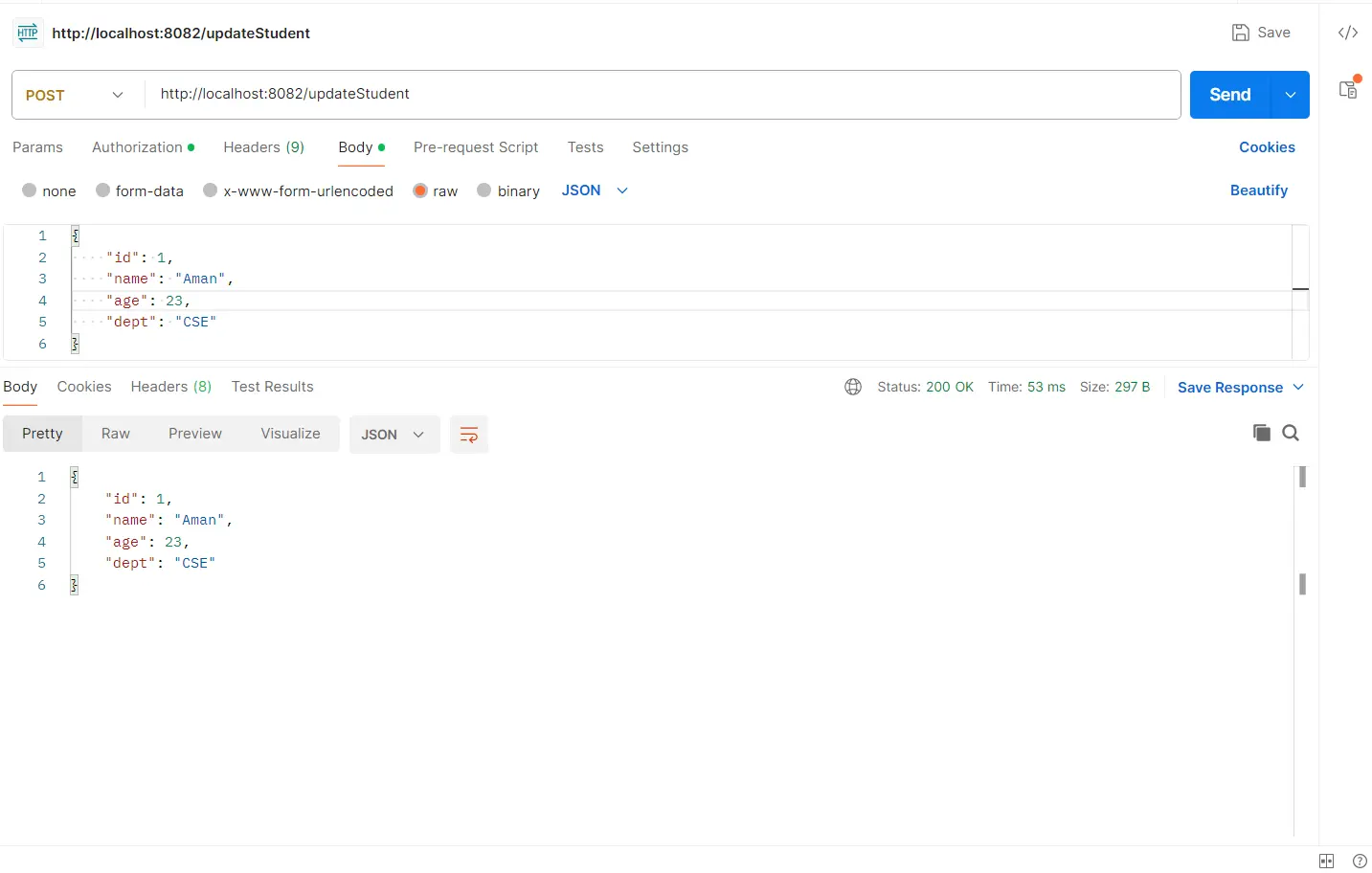

-> Update data (test- Update api)

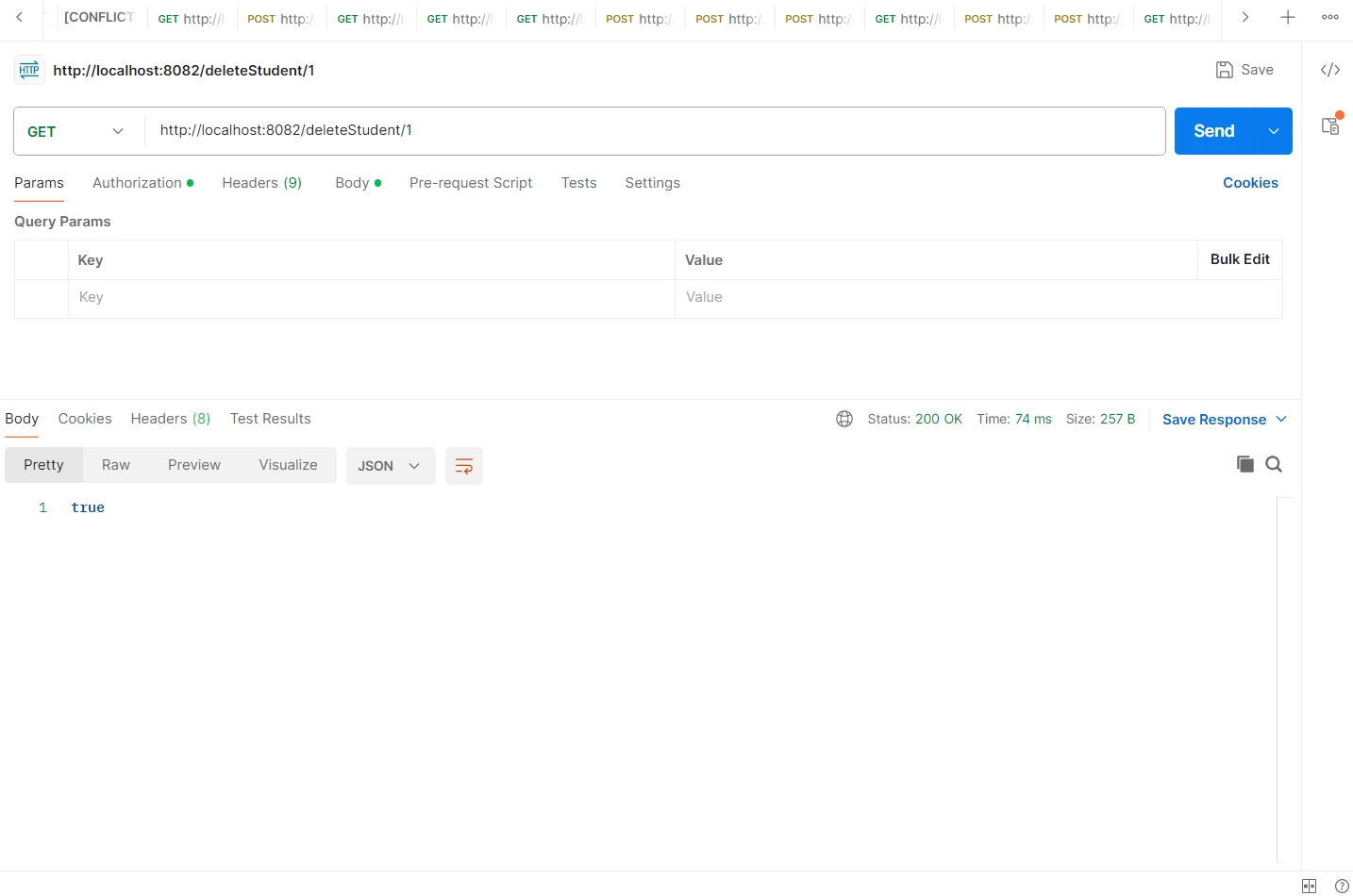

-> Delete the data from the table (test- Delete api)

In delete api i have send the id in url and based on the id it will delete the record

Youtube Video –

Github Repository –

https://github.com/amangupta7024/CRUD-Operation-SpringBoot
